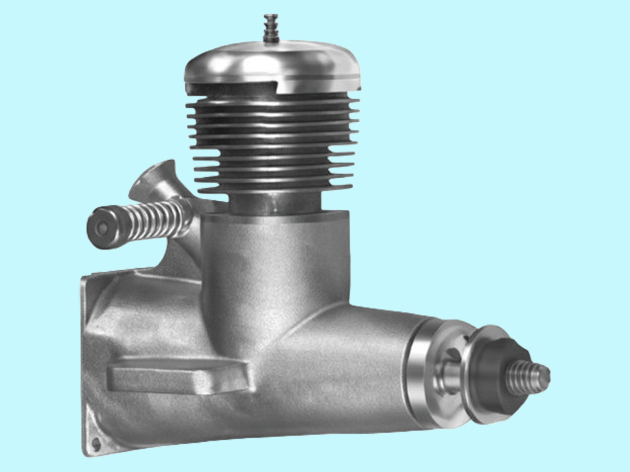

Fox .09 - 1

Type Model: Glow STD
Engine Size: 1.59cc
Company: Fox
Year of Manufacture: 1961
Article Analysis by: AeroModeller January 1961

Details:

Publisher:Fox
Edition:American
Keywords:Engines-Tests, Fox-Engines, Fox-Tests
Rating:0.00 (0Vote(s))
File size:604.1 KB
File Type:PDF Word
File Quality:Clear
Added by:hlsat
File:Fox .09 - 1
Link to URL:https://flyinghlsat.com/details.php?publication_id=13010
Designed as a low priced sports engine with the emphasis on being suitable for beginners the Fox .09 is particularly interesting in employing side port induction. As far as this country is concerned side port induction characteristic of the original spark-ignition motors has survived only in the Mills diesel (and that design dates back some fifteen years). In America side port induction has been almost unheard of as a production design since the famous Ohlsson series. The limitation as far as high speed engines are concerned is that with side porting the intake port cannot be opened as early as desirable without also having excessive opening after top dead center causing blowback down the intake tube. Hence it has always been considered that a side port arrangement cannot induct enough fuel for high speed running......
